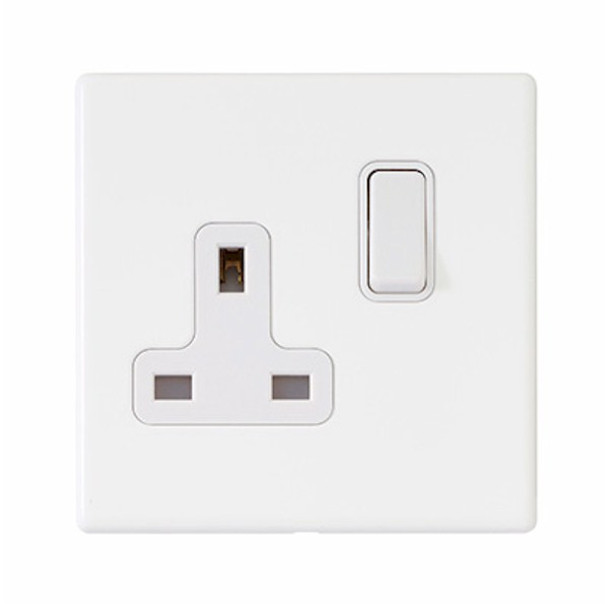

Hartland CFX Colours Bright White 1 gang 13A Double Pole Switched Socket White/White

Family Code:

S H CFX CL

Product Code:

S HCOL 7WC

Plate Size:

Single

Minimum Wall Box Depth:

35mm

Insert Colour:

White/White

Plate Material:

Plastic

Plate Finish:

Bright White

Technical Insert Description:

1 gang 13A Double Pole Switched Socket

Current Rating:

13 Amp

Max Load:

13 Amp

Voltage:

220/250V AC

Switched Poles:

Double

Contact Gap Minimum:

3mm

Terminal Capacity 1:

4x2.5mm²

Terminal Capacity 2:

3x4mm²

Terminal Capacity 3:

2x6mm² Multi-Strand

Terminal Capacity 4:

1x10mm²

Earth Terminal Capacity 1:

4x2.5mm²

Earth Terminal Capacity 2:

3x4mm²

Earth Terminal Capacity 3:

2x6mm² Multi-Strand

Earth Terminal Capacity 4:

1x10mm²

Product Class 1:

Must be earthed

Ambient Operating Temperature:

-5° to +40°C

Recommended Location:

Internal Use Only

Max Installation Altitude:

2000m

BS EN ISO Standard:

BS 1363-2

Range:

Hartland CFX Colours

Patents:

CFX is a Registered Trade Mark No 2398667

IP Rating:

IP2XD

Mains Frequency:

50Hz
