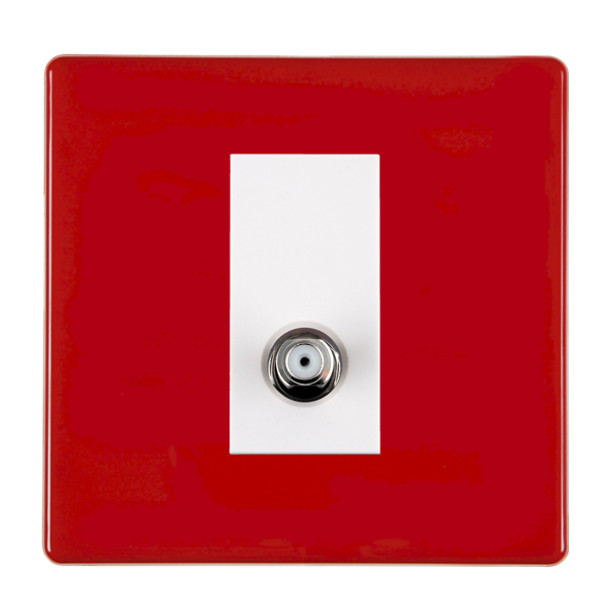

Hartland CFX Colours Pillar Box Red 1 gang Isolated Satellite White

Family Code:

S H CFX CL

Product Code:

S HCOL 7RC

Plate Size:

Single

Minimum Wall Box Depth:

35mm

Insert Colour:

White

Plate Material:

Plastic

Plate Finish:

Pillar Box Red

Technical Insert Description:

1 gang Isolated Satellite

Earth Terminal Capacity 1:

5x1mm²

Earth Terminal Capacity 2:

4 x 1.5mm2

Earth Terminal Capacity 3:

3 x 2.5mm2

Earth Terminal Capacity 4:

1 x 4mm2 Multi-strand

Earth Terminal Capacity 5:

1 x 6mm2

Product Class 1:

Must be earthed (ref BS7671 415.2.1)

Ambient Operating Temperature:

-5° to +40°C

Recommended Location:

Internal Use Only

Max Installation Altitude:

2000m

BS EN ISO Standard:

BS 5733

Euro Fix Additional Notes:

Isolated F-type outlet for Satellite or Cable TV installations where a DC signal back to the LNB unit on the satellite dish NOT required.

Range:

Hartland CFX Colours

Patents:

CFX is a Registered Trade Mark No 2398667

IP Rating:

IP2XD
