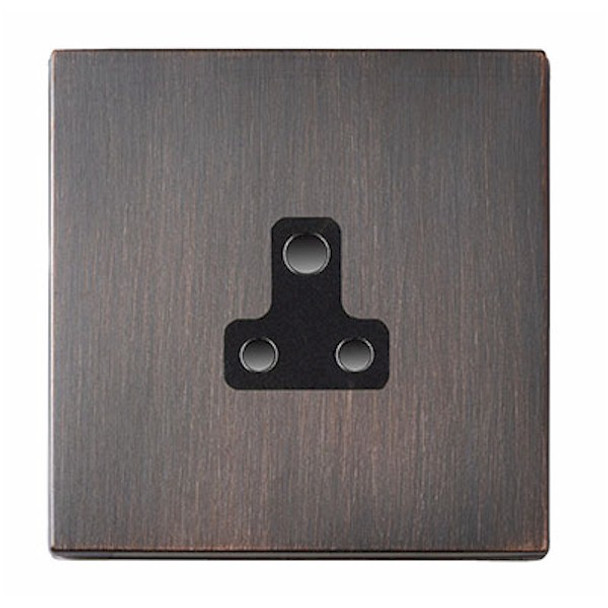

Hartland CFX Etrium Bronze 1 gang 5A Unswitched Socket Black

Family Code:

S HART CFX

Product Code:

S HT-C EB

Plate Size:

Single

Minimum Wall Box Depth:

35mm

Insert Colour:

Black

Plate Material:

Metal

Plate Finish:

Etrium Bronze

Technical Insert Description:

1 gang 5A Unswitched Socket

Current Rating:

5 Amp

Max Load:

5 Amp

Voltage:

220/250V AC

Switched Poles:

None

Contact Gap Minimum:

None

Terminal Capacity 1:

5 x1mm²

Terminal Capacity 2:

4x1.5mm²

Terminal Capacity 3:

2x2.5mm²

Terminal Capacity 4:

1x4mm²

Earth Terminal Capacity 1:

5x1mm²

Earth Terminal Capacity 2:

4 x 1.5mm2

Earth Terminal Capacity 3:

2 x 2.5mm2

Earth Terminal Capacity 4:

1 x 4mm2

Product Class 1:

Must be earthed

Ambient Operating Temperature:

-5° to +40°C

Recommended Location:

Internal Use Only

Max Installation Altitude:

2000m

BS EN ISO Standard:

BS 546

Range:

Hartland CFX

Patents:

CFX is a Registered Trade Mark No 2398667Hartland CFX is a Registered Design under Reference Nos.R21 = 3023446 SS2 =3023445

IP Rating:

IP2XD

Mains Frequency:

50Hz
