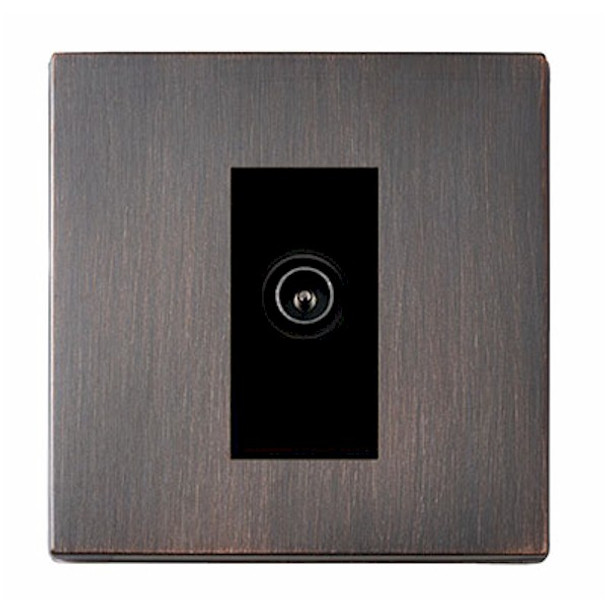

Hartland CFX Etrium Bronze 1 gang Non-Isolated TV (Male) (DAB Compatible) Black

Family Code:

S HART CFX

Product Code:

S HT-C EB

Plate Size:

Single

Minimum Wall Box Depth:

35mm

Insert Colour:

Black

Plate Material:

Metal

Plate Finish:

Etrium Bronze

Technical Insert Description:

1 gang Non-Isolated TV (Male) (DAB Compatible)

Earth Terminal Capacity 1:

5x1mm²

Earth Terminal Capacity 2:

4 x 1.5mm2

Earth Terminal Capacity 3:

3 x 2.5mm2

Earth Terminal Capacity 4:

1 x 4mm2 Multi-strand

Earth Terminal Capacity 5:

1 x 6mm2

Product Class 1:

Must be earthed (ref BS7671 415.2.1)

Ambient Operating Temperature:

-5° to +40°C

Recommended Location:

Internal Use Only

Max Installation Altitude:

2000m

BS EN ISO Standard:

BS 5733. BS EN 50083-2: 2012/A1:2015. BS EN 61169-2:2007

Euro Fix Additional Notes:

TV Outlet (IEC 169-2 male socket) Usually used for FM (DAB) outlet

Frequencies 1:

FM DC=5-2200 MHz

Range:

Hartland CFX

Patents:

CFX is a Registered Trade Mark No 2398667Hartland CFX is a Registered Design under Reference Nos.R21 = 3023446 SS2 =3023445

IP Rating:

IP2XD
