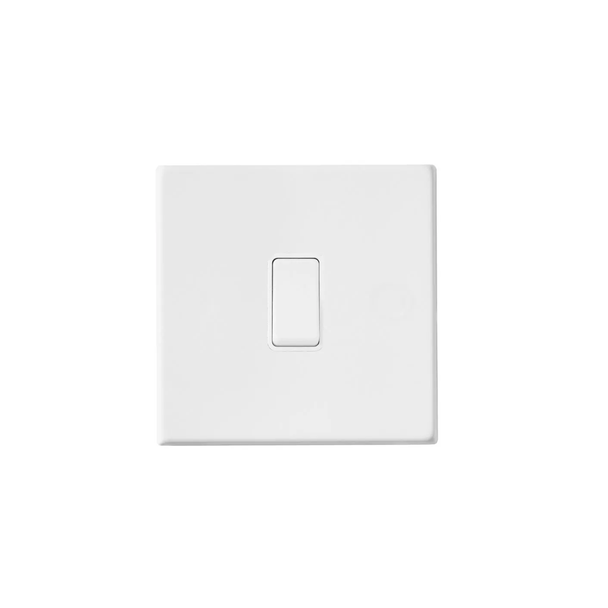

Hartland CFX Gloss White 1 gang 20AX 2 Way Rocker

70CR212WH-W

(No reviews yet) Write a Review

Estimating Shipping

RRP: £99.23
£54.58
— You save £44.65
Frequently bought together:

Description

The Hamilton Hartland CFX Gloss White 1-Gang 20AX 2-Way Rocker Switch combines modern aesthetics with reliable functionality. Featuring a sleek gloss white metal plate and concealed fixings, this switch offers a seamless, screwless appearance that complements contemporary interiors. Designed for 2-way switching configurations, it is rated at 20AX, making it suitable for controlling lighting circuits, including inductive loads up to 20 amps. The switch measures 86mm in both height and width with a slim 5mm depth, fitting into a standard single-gang back box with a minimum depth of 25mm.

Key Features:

  • Sleek Design: Gloss white finish with concealed fixings for a modern, screwless look.
  • High Capacity: Rated at 20AX, suitable for controlling lighting circuits, including inductive loads up to 20 amps.
  • 2-Way Switching: Allows control of a single light from two different locations.
  • Standard Dimensions: Measures 86mm x 86mm x 5mm, fitting standard single-gang back boxes.
  • Easy Installation: Requires a minimum wall box depth of 25mm; suitable for internal use.
  • Safety Compliant: Must be earthed according to BS EN 60669-1 standards.

Engineered for internal use, it operates efficiently within ambient temperatures ranging from -5°C to +40°C. The product must be earthed in accordance with BS EN 60669-1 standards, ensuring safety and compliance. Its minimalist design not only enhances aesthetic appeal but also simplifies installation, making it a practical choice for both residential and commercial settings.

Family Code:
S HART CFX
Product Code:
S HT-C WH
Plate Size:
Single
Minimum Wall Box Depth:
25mm
Insert Colour:
White/White
Plate Material:
Metal
Plate Finish:
Gloss White
Technical Insert Description:
1 gang 20AX 2 Way Rocker
Current Rating (A):
20ax
CE Marked:
Yes
Max Load:
20 Amp inductive
Voltage (V):
220-240
Switched Poles:
Single
Contact Gap Minimum (mm):
3
Terminal Capacity 1 (mm²):
5x1
Terminal Capacity 2 (mm²):
4x1.5
Terminal Capacity 3 (mm²):
2x2.5
Terminal Capacity 4 (mm²):
2x4 Multi-strand
Terminal Capacity 5 (mm²):
1x6
Earth Terminal Capacity 1 (mm²):
6x1
Earth Terminal Capacity 2 (mm²):
5x1.5
Earth Terminal Capacity 3 (mm²):
3x2.5
Earth Terminal Capacity 4 (mm²):
2x4 Multi-strand
Earth Terminal Capacity 5 (mm²):
1x6
Product Class 1:
Must be earthed
Ambient Operating Temperature:
-5° to +40°C
Recommended Location:
Internal Use Only
Max Installation Altitude:
2000m
BS EN ISO Standard:
BS EN 60669-1
Range:
Hartland CFX
Patents:
CFX is a Registered Trade Mark No 2398667Hartland CFX is a Registered Design under Reference Nos.R21 = 3023446 SS2 =3023445
IP Rating:
IP2XD
Mains Frequency:
50Hz
