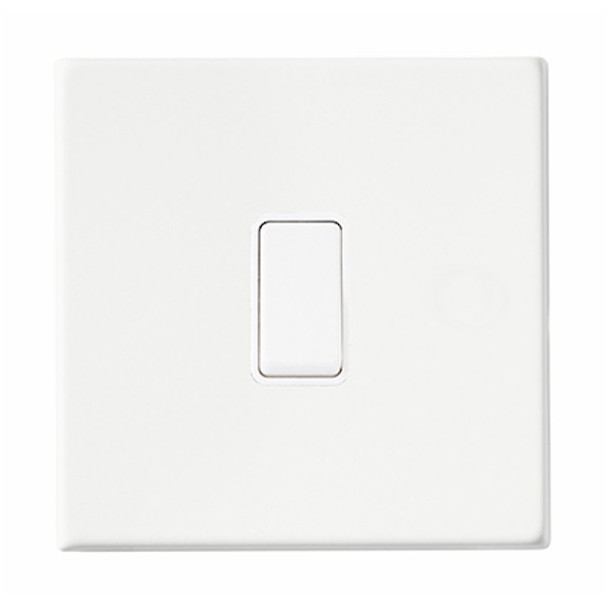

Hartland CFX Primed White 1 gang 10AX Intermediate Rocker White/White

Family Code:

S HART CFX

Product Code:

S HT-C PRW

Plate Size:

Single

Minimum Wall Box Depth:

25mm

Insert Colour:

White/White

Plate Material:

Metal

Plate Finish:

Primed White

Technical Insert Description:

1 gang 10AX Intermediate Rocker

Current Rating:

10AX

CE Marked:

Yes

Max Load:

10 Amp inductive

Voltage:

220/250V AC

Switched Poles:

Single

Contact Gap Minimum:

3mm

Terminal Capacity 1:

5x1mm²

Terminal Capacity 2:

4x1.5mm²

Terminal Capacity 3:

1x2.5mm²

Terminal Capacity 4:

1x4mm² Multi-strand

Terminal Capacity 5:

1x6mm²

Earth Terminal Capacity 1:

5x1mm²

Earth Terminal Capacity 2:

4x1.5mm²

Earth Terminal Capacity 3:

3x2.5mm²

Earth Terminal Capacity 4:

1x4mm² Multi-strand

Earth Terminal Capacity 5:

1x6mm²

Product Class 1:

Must be earthed

Ambient Operating Temperature:

-5° to +40°C

Recommended Location:

Internal Use Only

Max Installation Altitude:

2000m

BS EN ISO Standard:

BS EN 60669-1

Range:

Hartland CFX

Patents:

CFX is a Registered Trade Mark No 2398667Hartland CFX is a Registered Design under Reference Nos.R21 = 3023446 SS2 =3023445

IP Rating:

IP2XD

Mains Frequency:

50Hz
