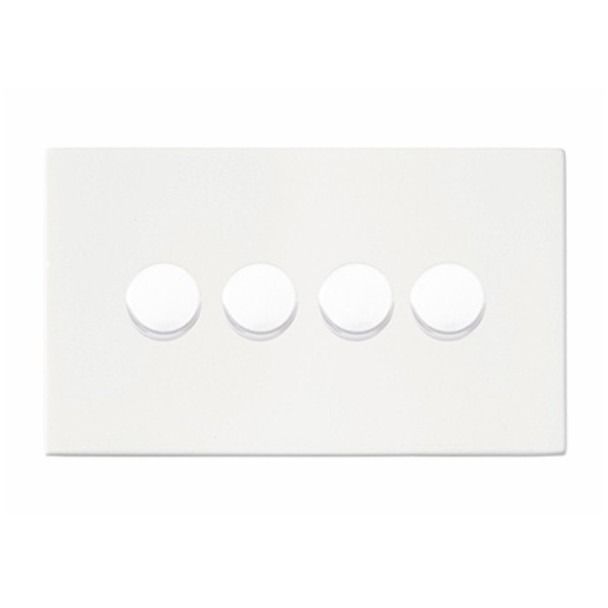

Hartland CFX Primed White 4x400W Resistive Leading Edge Push On-Off Rotary 2 Way Switching Dimmers max 300W per gang White

7WPC4X40

(No reviews yet) Write a Review

Estimating Shipping

RRP: £288.29
£158.57
— You save £129.72
Frequently bought together:

Description

Tungsten filament GU10 lamps must be branded with a fuse base. When using mains voltagehalogen lamps- dimmers should be de-rated by 25%. When dimming LED lamps de-rated by 75% - please contact our Technical for compatibility.
Family Code:
S HART CFX
Product Code:
S HT-C PRW
Plate Size:
Double
Minimum Wall Box Depth:
35mm
Insert Colour:
White
Plate Material:
Metal
Plate Finish:
Primed White
Technical Insert Description:
4 gang 400W Resistive Leading Edge Push On/Off Rotary 2 Way Switching Dimmer max 300W per gang
Current Rating:
1.25 Amps per gang
CE Marked:
Yes
Wattage:
300W per gang
Max Load:
300W resistive per gang
Voltage:
230V AC
Switched Poles:
Single
Terminal Capacity 1:
2x1mm²
Terminal Capacity 2:
2x1.5mm²
Earth Terminal Capacity 1:
5x1mm²
Earth Terminal Capacity 2:
4 x 1.5mm2
Earth Terminal Capacity 3:
3 x 2.5mm2
Earth Terminal Capacity 4:
1 x 4mm2 Multi-strand
Earth Terminal Capacity 5:
1 x 6mm2
Product Class 1:
Face plate must be earthed
Ambient Operating Temperature:
-5° to +40°C
Recommended Location:
Internal Use Only
Max Installation Altitude:
2000m
BS EN ISO Standard:
BS EN 60669-2-1
Range:
Hartland CFX
Patents:
CFX is a Registered Trade Mark No 2398667Hartland CFX is a Registered Design under Reference Nos.R21 = 3023446 SS2 =3023445
IP Rating:
IP2XD
Mains Frequency:
50Hz
View AllClose

Warranty Information

Resistive Leading Edge Push On/Off Rotary 2 Way Switching Dimmers
